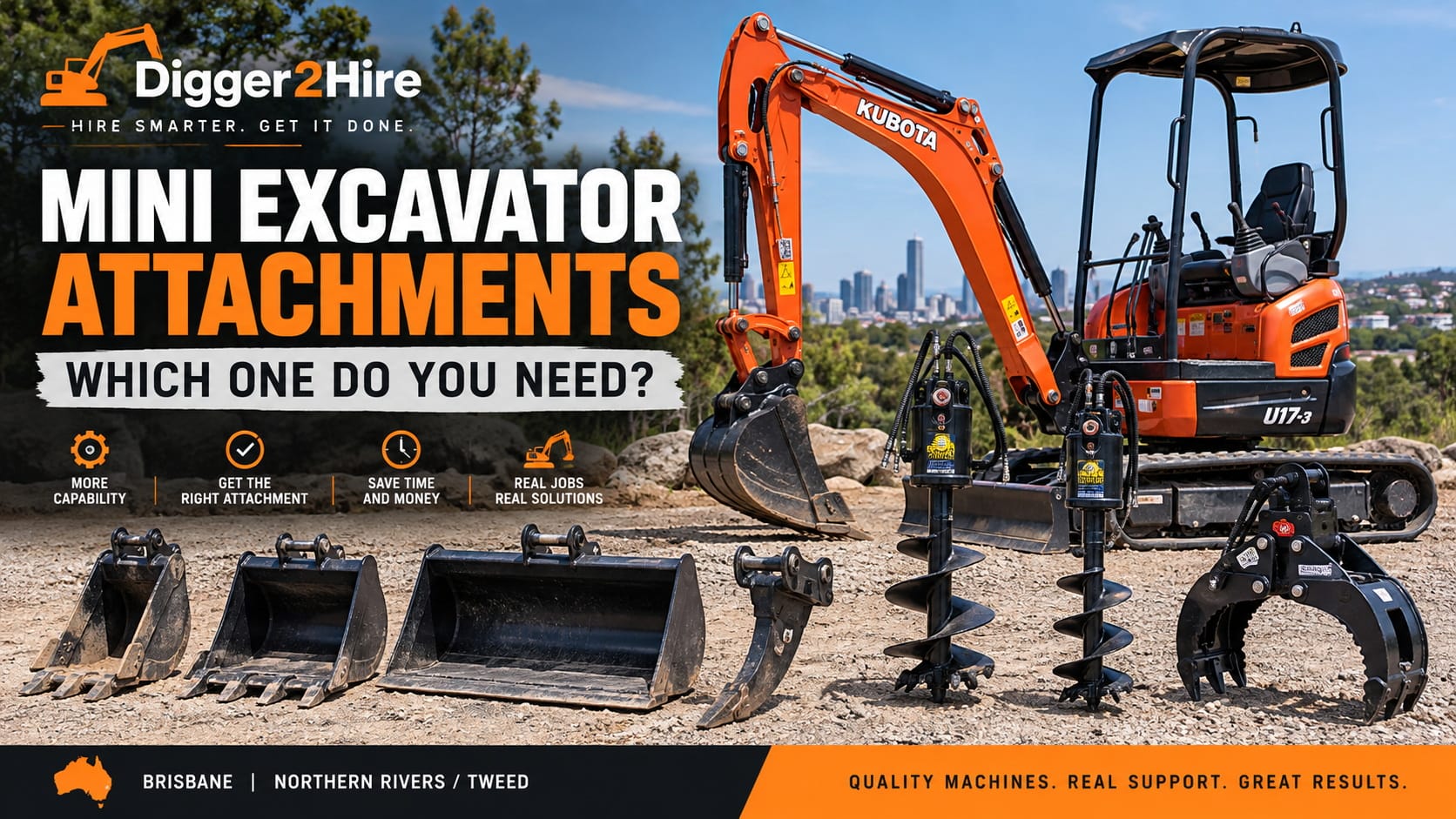

Mini Excavator Attachments: Which Attachment Do You Need?

Choosing a mini excavator attachment starts with the job. Digging a narrow trench? Start with a narrow toothed bucket. Hard clay? A ripper can loosen it before you dig. Drilling post holes? That’s where the auger comes in. For grading and clean-up, you’ll usually want the wide mud bucket.

You may use two or three attachments on the same job, so the question isn’t always which attachment do I need? It’s often which ones will I need, and in what order?

Quick answer: which mini excavator attachment do I need?

Job	Best starting attachment	Why
Narrow trench	300 mm toothed bucket	Keeps the trench narrow and reduces unnecessary spoil
General soil excavation	450 mm toothed bucket	Good all-round digging bucket
Levelling or clean-up	1,000 mm mud bucket	Wide edge suits grading and loose material
Compacted clay or hard soil	Ripper	Loosens hard ground before you dig it out
300 mm post hole	X2000 with 300 mm auger	Drills a 300 mm hole in suitable ground
Larger designed hole	X2000 with 450 mm auger	For jobs requiring about 450 mm diameter
Move rocks, logs or irregular material	Hydraulic rock grabber	Better control than balancing awkward material in a bucket
Position retaining-wall sleepers	Sleeper grab	Purpose-built sleeper handling where available

Use that as a starting point rather than a rule. The dimensions you need, the ground you’re working in and the access to the job can all change the best choice. A 450 mm auger being available, for example, doesn’t mean every retaining wall needs a 450 mm hole — use the size required by the job or design.

Some jobs need more than one attachment

One of the advantages of having several attachments with the machine is being able to change tools as the job changes. A few common examples are:

Job	Possible attachment sequence
Compacted clay excavation	Ripper to loosen → toothed bucket to excavate → mud bucket to finish
Retaining wall	Toothed bucket for preparation → auger for designed post holes → sleeper grab where available
Landscaping	Toothed bucket for excavation → hydraulic rock grabber for suitable rocks or logs → mud bucket for spreading and finishing
Roots or small-stump work	Toothed bucket to expose → ripper to loosen roots → hydraulic grabber where suitable to reposition separated material
Drainage trench	300 mm or 450 mm toothed bucket to suit the required width → mud bucket for backfilling or finishing where appropriate

Those are practical examples, not fixed sequences. Ground conditions, access, the material you’re dealing with and any design requirements still matter.

Digging trenches or moving soil? Start with the buckets

The 300 mm toothed bucket is the starting choice for narrow trenches and focused digging. If you only need a trench around that width, using the narrow bucket means less soil to dig out, move and potentially dispose of. Its narrower cutting edge can also help in firmer ground.

The 450 mm toothed bucket is a good general-purpose option for wider drainage trenches, landscaping and general excavation. It moves more material per pass when conditions suit it, but wider isn’t automatically better — there’s no advantage in digging a 450 mm trench if you only need 300 mm.

The 1,000 mm mud bucket comes into its own for levelling, grading, backfilling, spreading soil, cleaning excavation floors and moving loose material. It’s not the bucket to start with when you’re trying to break into compacted clay or hard ground. Loosen or excavate the material first, then use the mud bucket to finish.

Hard clay or roots? Use the ripper first

A ripper puts the excavator’s digging force onto a narrow point. That makes it useful for compacted clay, baked soil, resistant layers and roots that are difficult to get through efficiently with a bucket.

A practical hard-ground sequence is often ripper to loosen → toothed bucket to excavate → mud bucket to finish.

A ripper isn’t a rock hammer. If you’re dealing with competent rock rather than hard soil or weathered material, you may need different equipment or another method. For more detail, see Can a Mini Excavator Dig Clay and Hard Ground?

Drilling post holes? Choose the auger for the hole you need

Digger2Hire pairs the Auger Torque X2000 drive with the U17-3 and U25-3, using 300 mm and 450 mm augers.

The 300 mm auger is useful for fence posts, retaining-wall posts and planting holes where a hole around 300 mm is actually required. The 450 mm auger is there for larger posts, planting or designed pier holes that call for the larger diameter.

Don’t choose the 450 mm auger just because it’s bigger. If the job calls for a 300 mm hole, drilling 450 mm means removing a lot more soil for no benefit.

Clay, roots, rubble and rock can all affect drilling, and a standard earth auger won’t get through every obstruction. For structural posts or footings, use the dimensions specified in the plan or engineering.

Auger extensions are not currently included in the standard Digger2Hire package.

For more detail, see Can a Mini Excavator Dig Post Holes?

Moving rocks, logs or sleepers?

The hydraulic rock grabber is useful for gripping and repositioning rocks, logs, green waste and other irregular material that’s awkward to control with a bucket. It can also be handy for sorting material and site clean-up.

It’s useful when something is awkward to balance in a bucket, but what you can safely handle still depends on the object’s weight and shape, your reach, the attachment and the stability of the machine.

The sleeper grab is designed for gripping and positioning compatible retaining-wall sleepers. It’s available with the published Northern Rivers & Tweed K008-3, U17-3, U25-3 and ViO55-6B packages, but isn’t currently part of the standard Brisbane U17-3 package.

If you’re planning a retaining wall, see Can You Use a Mini Excavator for a Retaining Wall? for the wider excavation, drainage and post-hole process.

Which attachments come with Digger2Hire machines?

Attachment pricing varies between hire businesses. Some include selected attachments with the machine, while others charge separately for augers, grabs, rippers or other tools.

With Digger2Hire, the published attachment package for the confirmed machine and location is included in the advertised machine hire rate, with no separate daily attachment hire charge for those listed attachments.

Machine	Location	Published included package
Kubota K008-3 0.9T	Northern Rivers & Tweed; selected longer Brisbane hires by arrangement	300 mm and 450 mm toothed buckets, 1,000 mm mud bucket and sleeper grab
Kubota U17-3 1.7T	Brisbane	Three buckets, ripper, Auger Torque X2000, 300 mm and 450 mm augers and hydraulic rock grabber where suitable
Kubota U17-3 1.7T	Northern Rivers & Tweed	U17 core package plus sleeper grab
Kubota U25-3 2.5T	Northern Rivers & Tweed; selected longer Brisbane hires by arrangement	Three buckets, ripper, X2000, 300 mm and 450 mm augers, hydraulic rock grabber where suitable and sleeper grab
Yanmar ViO55-6B 5.5T	Northern Rivers & Tweed	Sleeper grab; other attachment requirements need confirmation

Check the exact package for the machine and location when arranging the hire. If you’re comparing Digger2Hire with another supplier, compare the complete package rather than the machine-only rate. Our mini excavator hire cost guide explains why that can make a real difference to the total.

Are excavator attachments universal?

No. The hitch, hydraulics, machine size and attachment weight all have to suit the excavator. Use the attachment supplied or confirmed for your machine rather than assuming an attachment from another excavator will fit.

After changing an attachment, make sure it’s correctly secured and follow the handover and manufacturer instructions. Keep people outside the operating area, identify underground services before digging or augering, and don’t improvise attachment compatibility.

Work out the machine and attachments for your job

Start with what you’re trying to do, the trench or hole dimensions you need, the ground conditions and the narrowest access to the work area. Our Mini Excavator Size & Project Calculator can help narrow down the machine.

If you already know what you’re dealing with, use Instant Quote to see a likely machine and hire estimate.

Sources and specifications

• Auger Torque — X2000 earth drill range
• Kubota Australia — U17-3 specifications
• Safe Work Australia — Quick hitches for earthmoving machinery
